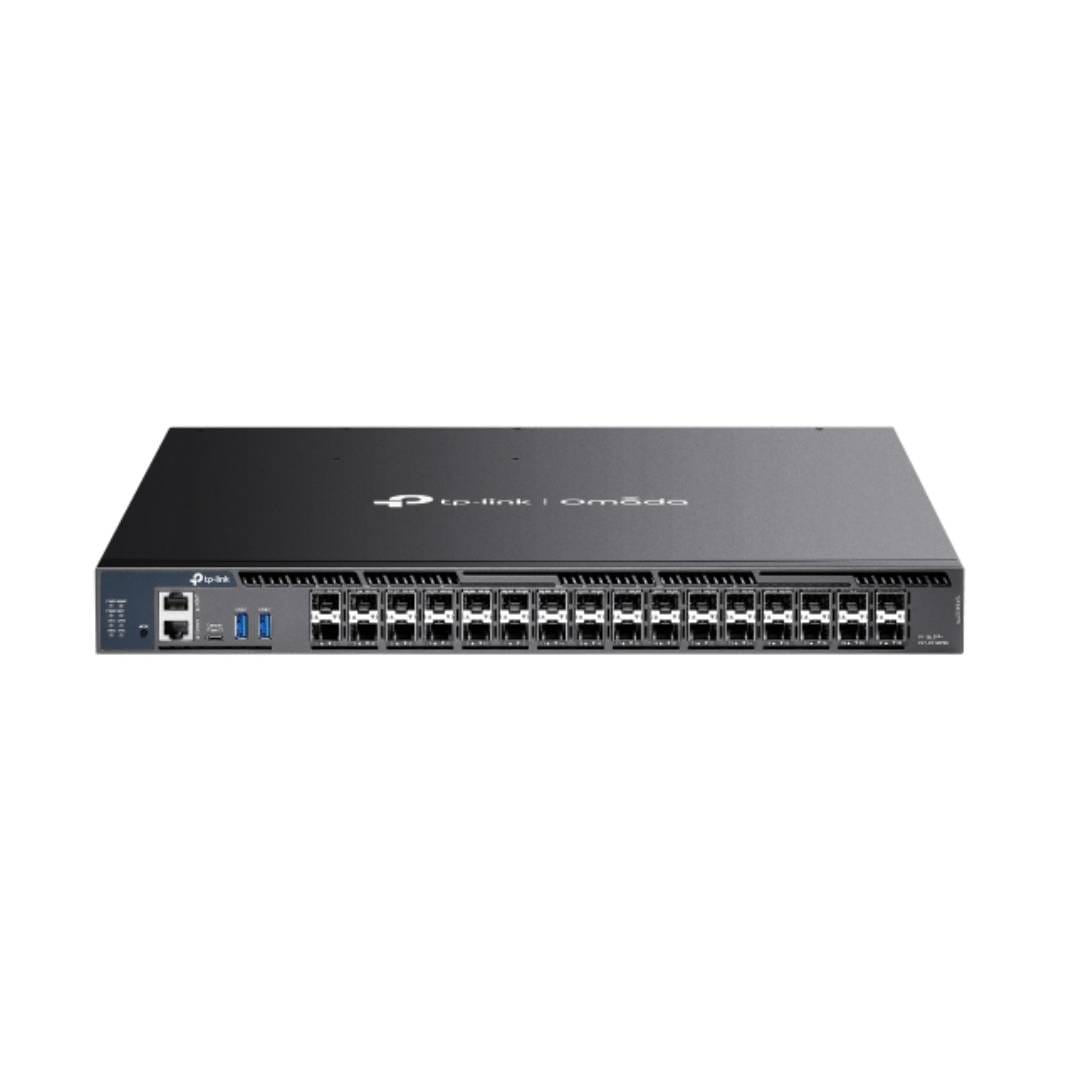

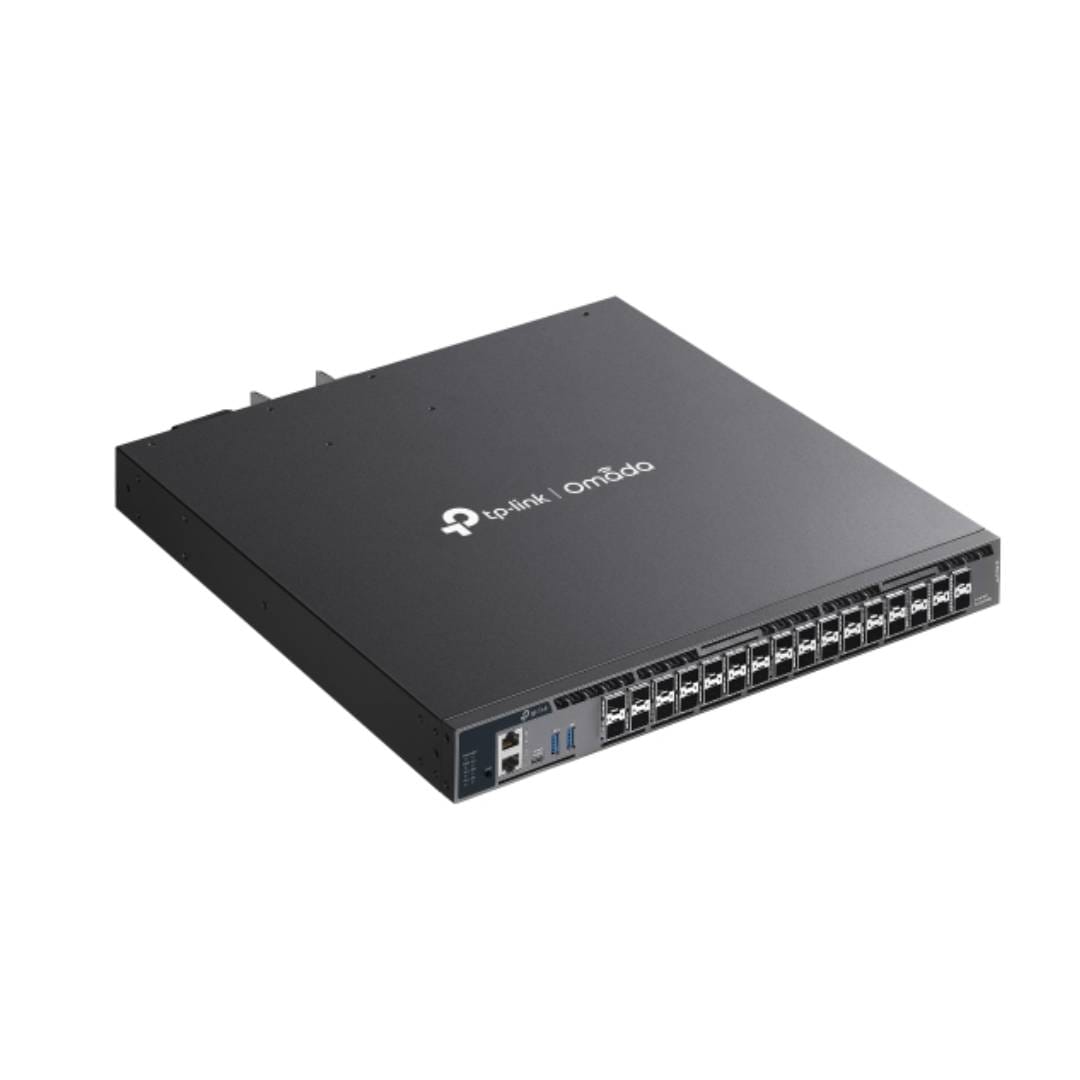

TP-Link Omada SX6632YF 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots

Next-Generation 10G/25G Fiber Aggregation for Enterprises and Data Centers

Designed for high-density 10G server access and ultra-fast 25G uplinks, the SX6632YF is TP-Link’s flagship Omada L3 managed switch that delivers a massive 1.28 Tbps non-blocking switching capacity in a compact 1U chassis. With full fiber connectivity, true physical stacking, hot-swappable redundant power and cooling, and complete Layer 3 routing, it provides the performance, resilience, and centralized management modern campuses, data centers, and large enterprises demand — all backed by the intelligent Omada SDN platform and a lifetime warranty.

Key Features

Comprehensive Security Framework

802.1X port-based/mac-based authentication, RADIUS/TACACS+, ACLs (L2–L4), IP-MAC-Port binding, ARP Inspection, DHCP Snooping, DoS defense, Storm Control, Private VLAN, and guest VLAN support to protect the network from unauthorized access and attacks

26 × 10G SFP+ + 6 × 25G SFP28 Full-Fiber Ports

Provides 100% fiber optic connectivity with 26 × 1/10G SFP+ slots for high-density server or access-layer aggregation and 6 × 10/25G SFP28 slots for ultra-high-speed uplinks to core switches, routers, or data center fabrics; all ports support auto-negotiation and backward compatibility with 1G SFP transceivers

True Physical Stacking up to 8 Units

Dedicated high-speed stacking ports deliver up to 160 Gbps stacking bandwidth; stack up to 8 switches in standalone mode (or 4 under Omada controller) for single-IP management, unified configuration, automatic failover, and dramatically simplified large-scale deployments

Full Layer 3 Routing Suite

Hardware-based static routing, RIP v1/v2, OSPF v2, Policy-Based Routing (PBR), Equal-Cost Multi-Path (ECMP) load balancing, VRRP for gateway redundancy, PIM-DM multicast routing, and full DHCP Server/Relay/Snooping capabilities — eliminating the need for external routers in most campus and enterprise environments

Enterprise-Class High Availability & Redundancy

Dual hot-swappable power supply bays (1 × PSM550-AC included, second optional for true N+1), four field-replaceable smart fans with N+1 redundancy, Ethernet Ring Protection Switching (ERPS/G.8032) with <50 ms failover, and dual firmware images + dual configuration files for risk-free upgrades

Omada SDN 100% Centralized Cloud Management

Fully integrated with TP-Link Omada Software Defined Networking platform; supports Zero-Touch Provisioning (ZTP), cloud or on-premises controller, multi-site/multi-tenant management, real-time traffic analytics, automated firmware distribution, and seamless integration with Omada access points, gateways, and other switches

What’s in the Box

• SX6632YF Switch
• 1 × PSM550-AC Hot-Swappable Power Supply (pre-installed)
• 4 × Hot-Swappable Fan Modules (pre-installed)
• Rack-Mount Kit & Screws
• RJ45 Console Cable + USB-C Console Cable
• Power Cord
• Quick Installation Guide
