Enjoy Wi-Fi Outside, Finally

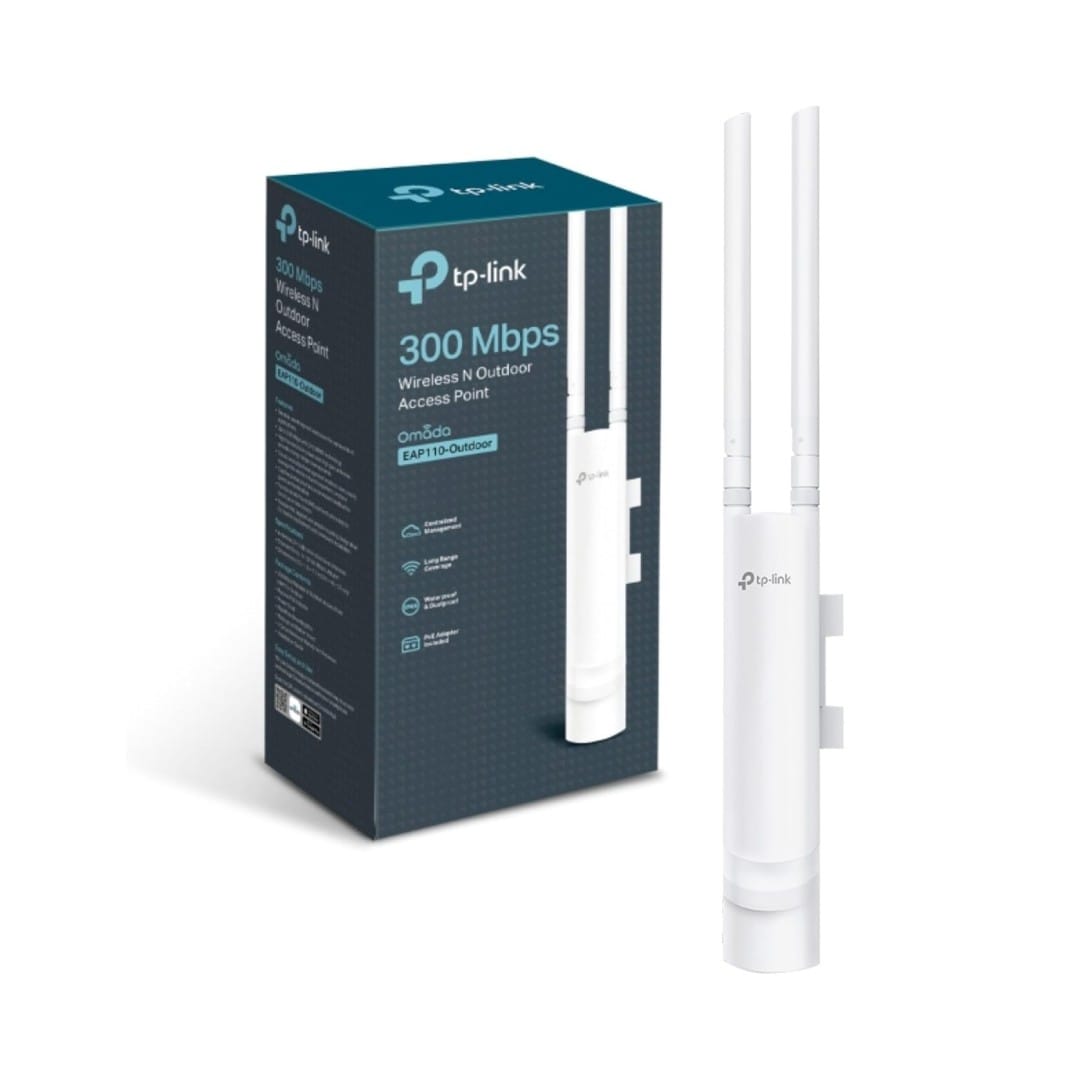

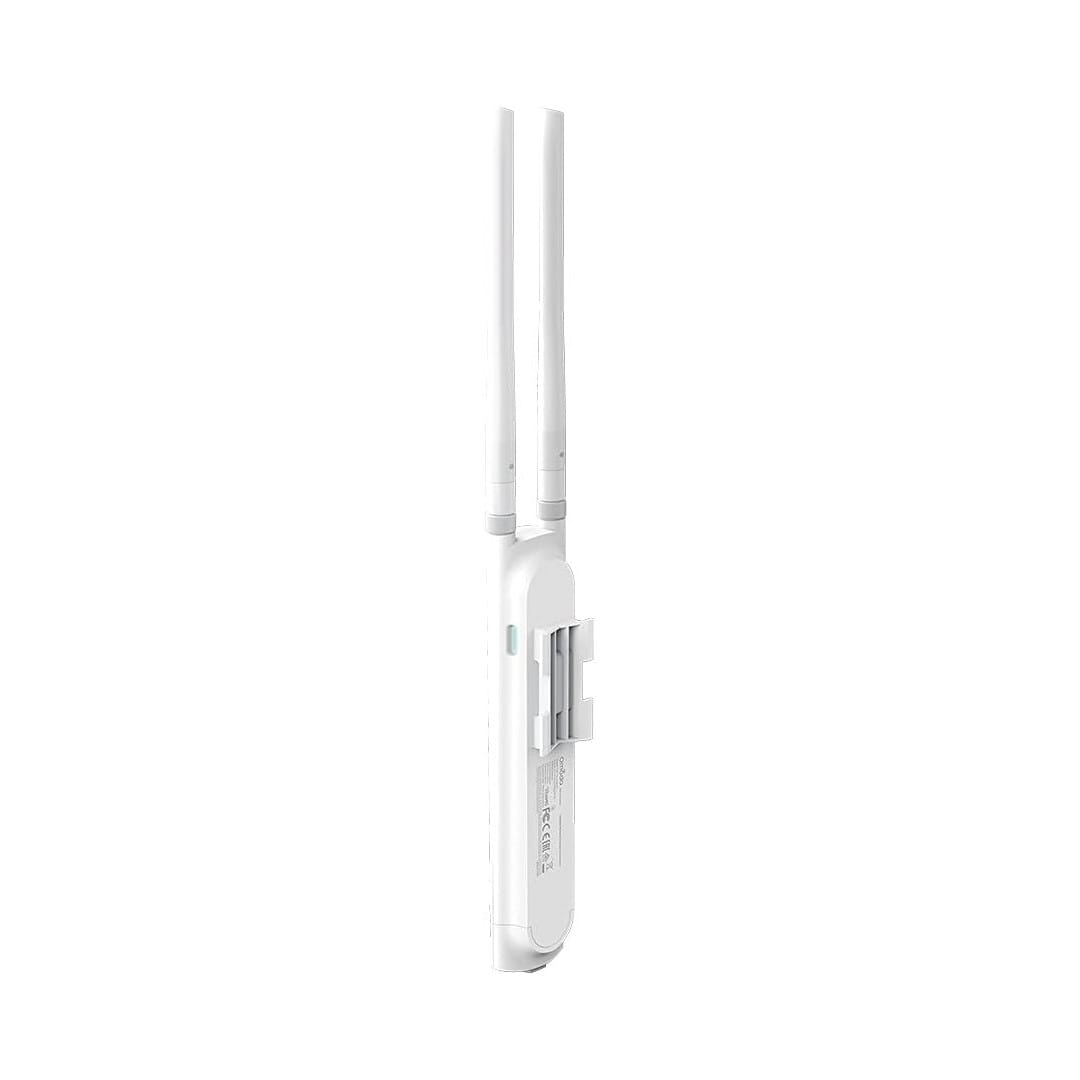

The TP-Link EAP110-Outdoor is a 300Mbps 802.11n outdoor access point with IP65 weatherproofing, 2x 3dBi detachable antennas, and Passive PoE. It delivers 200m+ coverage, supports 50+ clients, and features Multi-SSID, captive portal, and WPA2-Enterprise security. Managed via Omada app, it’s ideal for gardens, pools, and commercial outdoor Wi-Fi.
Key Features
300Mbps Wireless N with 2×2 MIMO
The EAP110-Outdoor delivers up to 300 Mbps on the 2.4 GHz band using 2×2 MIMO technology, supporting smooth HD streaming, VoIP calls, and multiple devices simultaneously with stable connections for up to 50 clients.
IP65 Weatherproof & Durable Design
Built with an IP65-rated enclosure and 6kV lightning/ESD protection, it operates reliably in extreme conditions from -30°C to 65°C, resisting rain, dust, and harsh outdoor elements for 24/7 performance.
Detachable High-Gain Antennas
Equipped with two detachable 3 dBi omnidirectional waterproof antennas, it provides flexible coverage up to 200 meters in open areas, with the option to upgrade to higher-gain antennas for extended range.
Passive PoE for Flexible Installation
Supports Passive PoE (24V injector included) for power and data over a single cable up to 100 meters, enabling easy pole or wall mounting without proximity to power outlets.
Omada SDN Centralized Management
Managed via free Omada SDN Controller software or app, it supports Multi-SSID, captive portal (Facebook/SMS login), rate limiting, load balancing, and enterprise-grade WPA2-Enterprise security for scalable deployments.
What’s in the Box
- EAP110-Outdoor Access Point
- Passive PoE Adapter
- Power Cord
- Mounting Kits (Pole/Wall)
- Waterproof Rubber Insert
- Waterproof Antennas
- Installation Guide
FAQs
Can I manage the EAP110-Outdoor without a controller?
Yes—configure it in standalone mode via its web interface (default IP 192.168.0.254); advanced features like captive portal vouchers and load balancing require the free Omada SDN Controller.
What is the real-world coverage range?
Up to 200 meters in open areas, but typically 50–100 meters with clear line-of-sight; vertical placement (roof vs ground) reduces effective range due to antenna pattern.
Are the antennas detachable and upgradable?
Yes—two 3 dBi waterproof omni antennas with RP-SMA connectors; replace them with higher-gain or directional antennas for extended or focused coverage.
How many users can it handle reliably?
Up to 50+ simultaneous users; 25–30 for smooth performance with video/streaming, 40+ may cause occasional errors in high-density scenarios.
