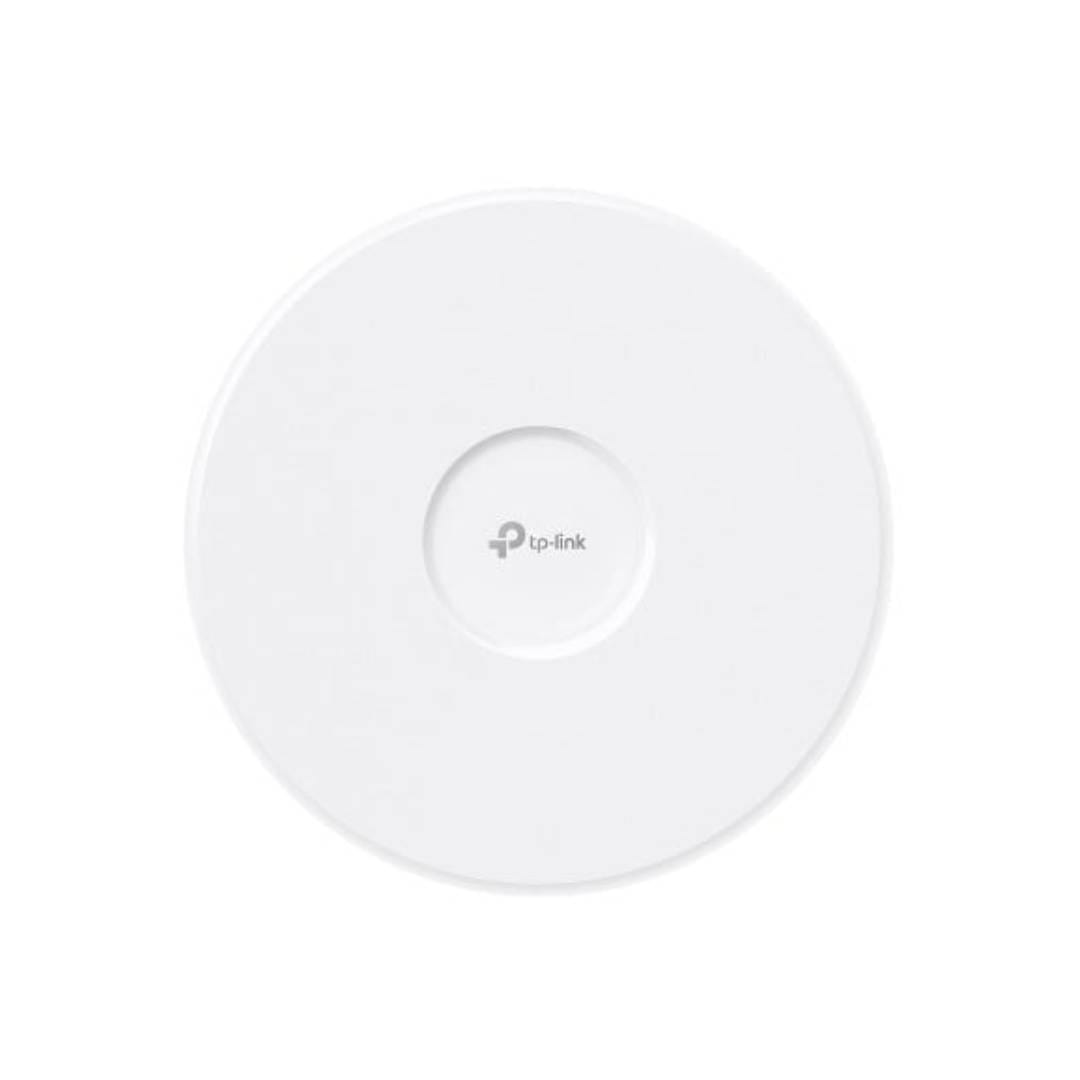

TP LINK BE3600 Ceiling Mount Wi-Fi 7 Access Point

Dual-band Wi-Fi 7 (802.11be) ceiling-mount access point

The TP-Link EAP723 is a dual-band Wi-Fi 7 (802.11be) ceiling-mount access point designed for high-density environments like offices, hotels, schools, and retail spaces. Delivering aggregate speeds up to 3.6 Gbps (BE3600: 2.882 Gbps on 5 GHz + 688 Mbps on 2.4 GHz), it features a 2.5 Gbps PoE+ port, seamless Omada SDN integration, and advanced features like Multi-Link Operation (MLO) for low-latency performance — ensuring reliable, future-proof wireless connectivity for hundreds of devices.

Key Features

Wi-Fi 7 Dual-Band Performance

Achieves BE3600 speeds with 2.882 Gbps on the 5 GHz band (using 240 MHz channels and 4×4 MU-MIMO) for ultra-fast downloads, 4K/8K streaming, and AR/VR applications, plus 688 Mbps on 2.4 GHz for broader coverage and IoT compatibility — all enhanced by Multi-Link Operation (MLO) for simultaneous multi-band transmission to reduce latency by up to 80%

2.5 Gbps Multi-Gigabit PoE+ Port

High-speed wired uplink eliminates bottlenecks, supporting full Wi-Fi 7 throughput with 802.3at PoE+ for flexible, cable-free deployment — no separate power adapter needed, and compatible with passive PoE+ for cost savings.

High-Density Support for 250+ Clients

Handles over 250 concurrent connections with OFDMA, MU-MIMO, and beamforming to efficiently serve crowded environments without slowdowns, ideal for conference rooms, classrooms, or public venues

Omada SDN Centralized Management

Full integration with Omada Cloud or on-premises controllers for zero-touch provisioning, seamless roaming (802.11k/v/r), band steering, mesh networking, and real-time monitoring — manage multiple APs across sites via app, web, or cloud with no licensing fees

Enterprise-Grade Security

WPA3 encryption, VLAN support, rogue AP detection, guest network isolation, and SNMP v1/v2c/v3 for secure, segmented access; plus captive portal with SMS/Facebook/voucher authentication for controlled Wi-Fi.

Advanced Wireless Optimization

160/240 MHz channel widths, 4096-QAM modulation for 20% higher efficiency, airtime fairness, load balancing, and interference mitigation ensure optimal performance in dense or noisy RF environments.

Bandwidth Control & QoS

Flexible IP/MAC-based bandwidth allocation, session limits, and 802.1p/DSCP prioritization ensure smooth VoIP, video, and critical traffic in busy environments.

What’s in the Box

• EAP723 Wi-Fi 7 Access Point
• PoE Injector (Passive 802.3at)
• Mounting Kit (Ceiling/Wall Brackets)
• Power Adapter (DC)
• RJ45 Ethernet Cable
• Quick Installation Guide

FAQs
