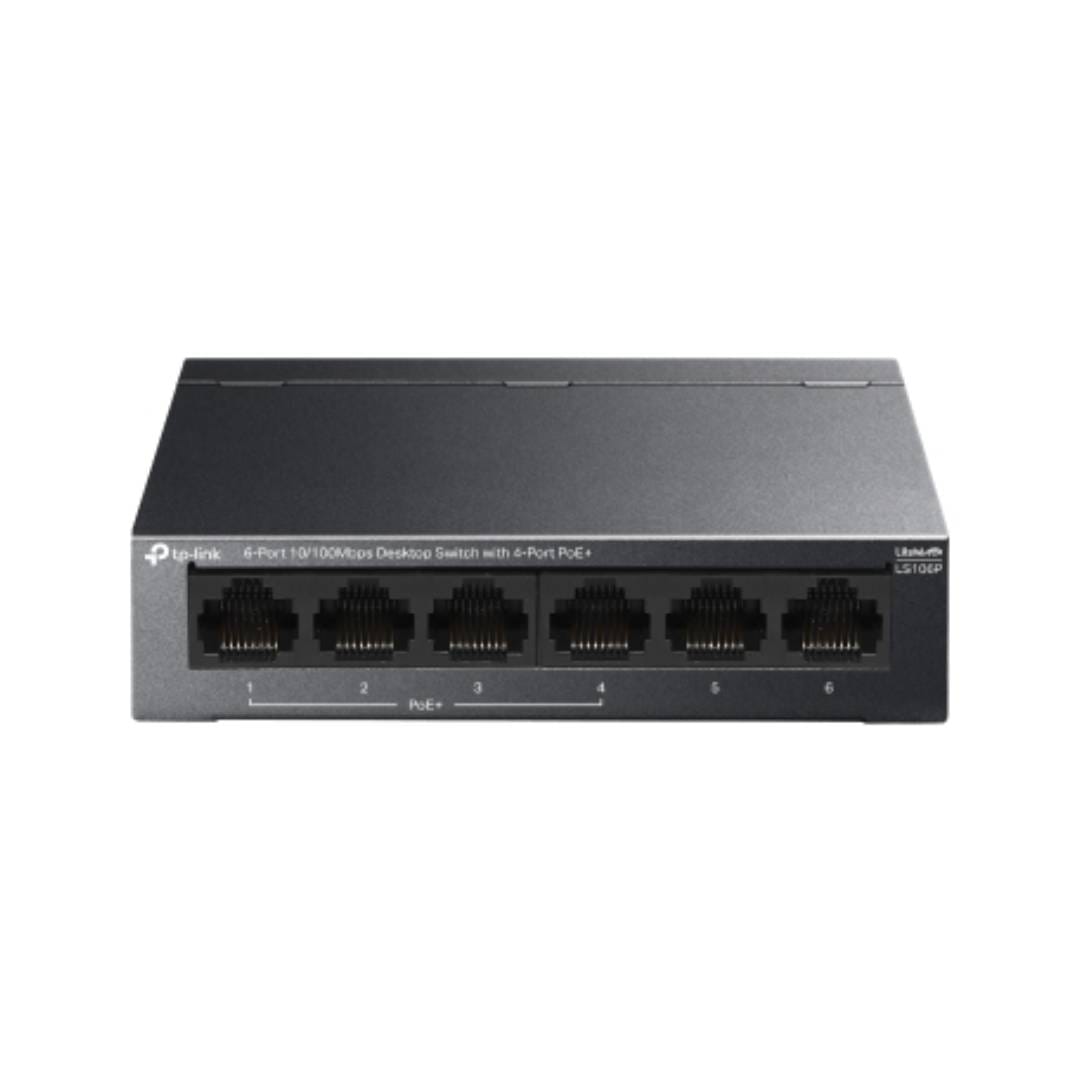

Tp-link 6-Port 10/100Mbps Desktop Switch with 4-Port PoE+ LS106P

Compact, unmanaged desktop PoE+ switch

The TP-Link LS106P is a compact, unmanaged desktop PoE+ switch designed for small offices, home networks, and IP surveillance setups. With 4 PoE+ ports delivering up to 30 W each (total 65 W budget), 2 non-PoE ports, Extend Mode for up to 250 m transmission, Isolation Mode for security, and PoE Auto Recovery, it provides plug-and-play simplicity while powering devices like IP cameras, VoIP phones, and access points over a single cable.

Key Features

4 × 10/100 Mbps PoE+ Ports

Compliant with IEEE 802.3af/at, each port supplies up to 30 W to power high-demand devices such as 4K IP cameras, Wi-Fi access points, VoIP phones, and intercoms, eliminating the need for separate power adapters or injectors in your setup

65 W Total PoE Power Budget

Efficiently distributes power across all 4 PoE+ ports, supporting multiple devices simultaneously (e.g., 4 cameras at ~15 W each or 2 at full 30 W), with intelligent power management to prevent overload.

2 × 10/100 Mbps Non-PoE Ports

Additional uplink or connectivity options for non-powered devices like PCs, printers, NAS, or routers, allowing flexible network expansion in small environments.

Extend Mode for Long-Distance Transmission

Boosts PoE and data range up to 250 m (820 ft) at 10 Mbps — ideal for large properties, warehouses, or outdoor surveillance where running long cables is necessary.

Isolation Mode

One-click traffic separation between downlink ports enhances security and performance by preventing client-to-client snooping, perfect for guest networks or public Wi-Fi hotspots.

PoE Auto Recovery

Automatically detects and reboots unresponsive or frozen PoE-powered devices (PDs) without manual intervention, ensuring continuous operation for critical equipment like security cameras.

What’s in the Box

• LS106P Desktop Switch
• Power Adapter
• Rubber Feet
• Installation Guide
