Master Your Energy Grid

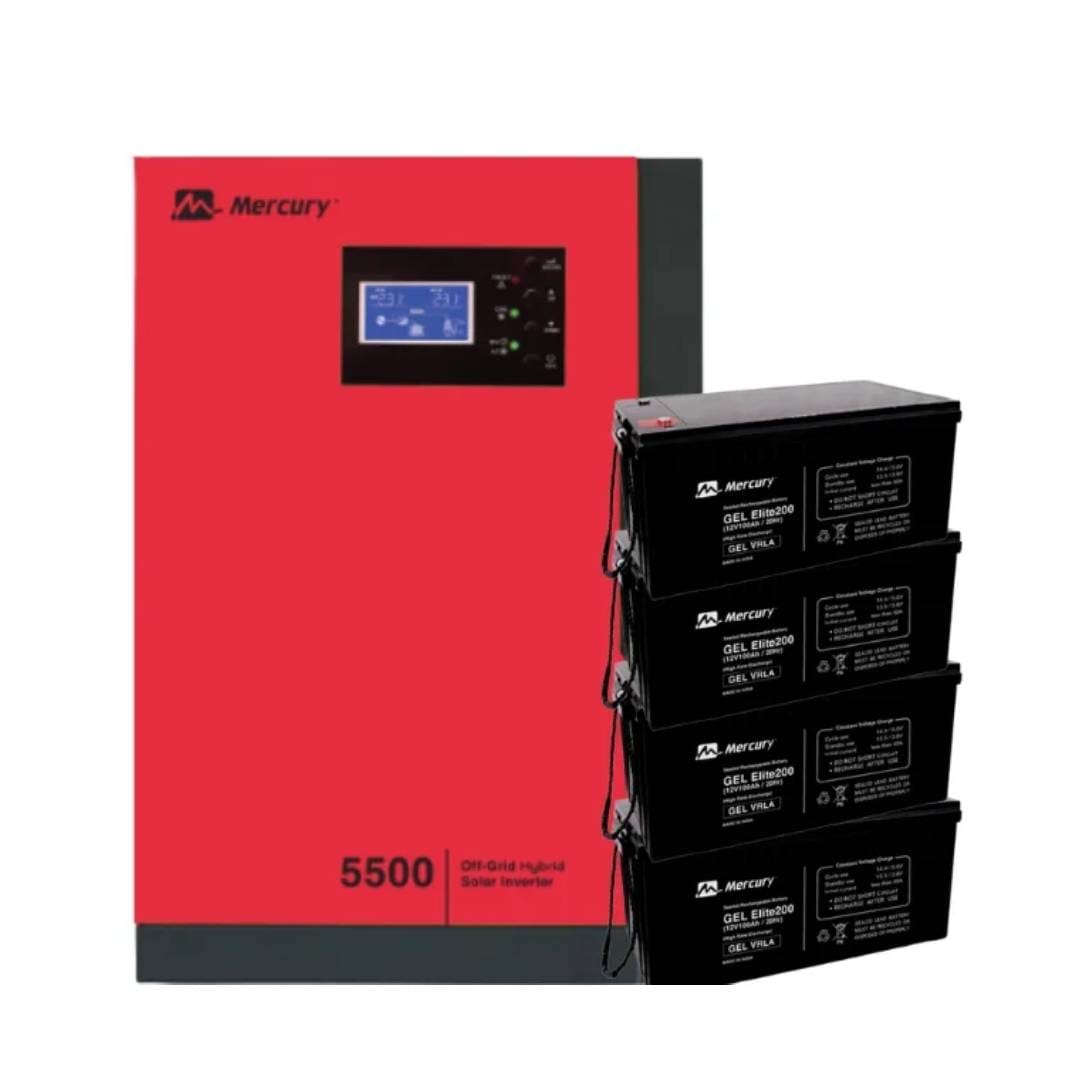

The Mercury 5.5kVA 48V(48V/5500Va) Solar Hybrid Inverter is a high-capacity energy management solution designed to provide reliable, uninterrupted power for high-demand residential and commercial setups. Integrating a robust pure sine wave inverter, an advanced MPPT solar charge controller, and a high-current AC battery charger into a single sleek enclosure, this unit efficiently manages power distribution across solar arrays, battery banks, and the utility grid or generator.
Its 48-volt DC architecture significantly reduces current draw and cable heat loss, enabling seamless operation of heavy household appliances, HVAC systems, pumping machines, and sensitive office electronics. Equipped with a multifunction LCD control screen for real-time monitoring and customizable power priority modes, the Mercury 5500VA hybrid inverter safeguards connected loads with built-in overload, short-circuit, and thermal protections while maximizing energy independence and reducing grid utility costs.
Key Features
High-Capacity 48V Architecture
The 48-volt DC configuration reduces operating current and minimizes heat generation across cable connections. This allows the system to efficiently handle heavy household loads, commercial appliances, and persistent high-power demands while maintaining system stability and longevity.
Integrated High-Efficiency MPPT Controller
An advanced maximum power point tracking solar charge controller maximizes energy conversion from connected solar arrays. It dynamically adjusts input parameters to harvest maximum solar output, ensuring faster battery replenishment and reduced reliance on utility grid power.
Pure Sine Wave Output
Delivering clean, stable utility-grade AC power, the pure sine wave inverter protects sensitive electronics from electrical distortion. It safely powers precise digital equipment, medical devices, office hardware, and motor-driven appliances without performance degradation or audible noise.
Multifunction LCD Control Display
A dynamic user interface provides real-time visibility into operating parameters, battery charge levels, and solar performance. System settings can be customized directly through the front panel, allowing quick adjustments to AC input priority, battery charging current, and output voltage levels.
Comprehensive System Protections
Built-in automated safeguards shield the unit and attached equipment from power anomalies. Smart monitoring features instantly trigger isolation protocols during overloads, short circuits, reverse polarity, and thermal spikes to prevent hardware damage and maintain continuous operational safety.
What’s in the Box
- Mercury Solar Hybrid Inverter 48V / 5500VA unit
- User manual and installation guide
- Communication cable (RS-232 / USB)
- Mounting screws and wall anchor set
- Protective terminal covers and spare fuses
FAQS
How many batteries and solar panels are required for this inverter?
This unit runs on a 48V DC architecture, requiring a 48V battery configuration consisting of either four 12V deep-cycle batteries connected in series or a single 48V compatible lithium battery bank. For solar generation, the integrated high-voltage MPPT controller typically supports connecting between 8 and 12 solar panels ranging from 300W to 550W in series or parallel array configurations up to the maximum 5,500W PV input capacity.
Can this 5.5kVA inverter run high-load appliances like air conditioners and pumps?
Yes, the 5,500W continuous output rating and pure sine wave technology safely power heavy inductive motor loads. It can start and run a 1.5 HP to 2 HP air conditioner or a 1 HP to 1.5 HP water pump, alongside simultaneous household electronics, TV units, refrigerators, and lighting systems, provided total power draw stays below 5,500 Watts.
Does the inverter support operation without batteries?
Yes, this model features a battery-less operation mode that allows it to power connected loads directly from incoming solar PV power during daylight hours. While it can run loads without a connected battery bank during peak sunlight, installing a battery is recommended to prevent interruptions caused by sudden cloud cover or nighttime power cuts
Is this unit an off-grid or grid-tie hybrid system?
This unit functions as an off-grid hybrid system equipped with grid-bypass and smart AC charger capabilities. It intelligently combines solar, grid, or generator power sources to handle connected load demand and replenish batteries, but it does not export excess solar electricity back into the main utility grid, preventing unexpected billing issues or utility policy conflicts.
What battery types are compatible with the smart charge controller?
The built-in intelligent charger supports standard Lead-Acid, AGM, Gel, and Lithium-ion or Lithium Iron Phosphate ($LiFePO_4$) battery chemistries. System settings can be configured using the front LCD control panel to adjust float voltage, bulk voltage, low-voltage disconnect thresholds, and maximum charging current to optimize performance and protect your battery bank.
